"Witness Marks" & Luger Barrels



This article regarding the use of "witness marks" during the manufacture, installation and re-barreling of Luger pistols was researched and authored my member Dwight Gruber who has granted permission for it to be posted permanently for reference on the Lugerforum.


INTRODUCTION
A while back somebody posted that on the Lugerforum that in his opinion Luger barrels had been "messed with" much more than we think, that many of the Lugers which we accept as all-original have undergone re-barreling over their lifetime of hard use. This assertion bothered me, and I began to wonder how it could be tested.

Over several months I closely examined the barrels of my own Lugers. The nature of the witness marks made me question in my own mind the authenticity of the barrels on some of my collection, and I corresponded with other collectors to explore the topic--a feeling of misgiving, without particular direction.

A recent discussion on the Lugerforum began with this post by collector Tom Armstrong (quoted by permission):

"Am in Louisville KY attending SOS and Gunday shows. At the Gunday show yesterday I scored a very nice KM rig, a 1940 dated Code 42, in about 97% condition, Ost See pantograph marked with one matching mag, an armorer's code 42 mag and a code 42 tool, all in a lovely Curt Vogel 1939 dated KM holster. I was one happy camper. The sheep-dip nature of the show -crowded beyond belief-precluded my doing my normal disassembly inspection prior to purchase, so I just gave the markings a peek with my loupe and went for it. It was a little pricey but what the hell.

"After dinner, several members of the forum and I were having after dinner drinks when one of the guys took the piece apart. His voice registered dismay when he said, 'Look, the witness marks do not align and the barrel does not have a letter suffix.'

"Well, I thought I had been taken.

"This morning, I went back to the show, prepared to have a bit of a chin-wag with the dealer who had sold me this bogus gun.

"Fortunately, there were very few people in the hall at the time and I could easily get to Bob Simpson's booth. I showed the piece to Bob, pointed out the "problems" and asked his opinion.

"Bob explained to me that the witness marks were placed on the barrel and frame BEFORE the front sight block was machined out of the barrel stock and then the barrel was removed from the frame for further machining, polishing and finishing. After this, the barrel was reinstalled and quite frequently the witness marks would be improperly aligned. In short, this was nothing to worry about and was not an indication of a buggered gun.

Likewise, he remarked that he has seen many, many III Reich era lugers that lacked the barrel suffix.


"In short, it was a righteous gun.

"I learned something new as a result and avoided a certain to have been unpleasant conversation.

"My public thanks to Bob and I guess no matter how much we learn about our toggle-tops, we will never know it all."

This gelled several questions in my mind, and began the avalanche of witness mark posts over two Luger discussion forums.

THE WITNESS MARK
"Witness mark" is a term without a precise meaning. In fact, research reveals that nowhere is it used formally in the machinists' trades. It is used on an ad-hoc basis to describe all manner of alignments and evidence of wear. I will continue to use it here as it is the commonly recognized term for the topic at hand.

Over the course of the discussion many interesting and imaginative uses and reasons for Luger witness marks were proposed. However, the "Markings Applied to Pistols 08, 1910" (including amendments through 1914) state--(1)

"Pistols, finished as follows:
26a pistol ready for power-proof and shooting-in:
...
*Barrel and front sight: after sight adjustment, a chisel mark, 3 to 4mm high, of equal length on both parts.
*Barrel and receiver: after sight adjustment, a chisel mark, 3 to 4mm high, of equal length on both parts."

The illustration which accompanies the instructions show this very clearly (but very small) as the "witness mark".

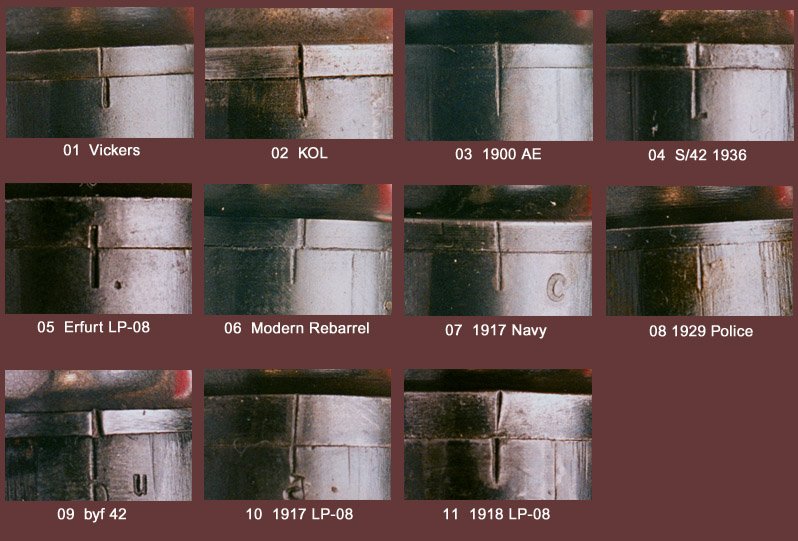

Intuitively, then, witness marks should appear as a single strike and line up perfectly. An examination of real guns reveals that some of them are an uncomfortable fit with intuition and specification. The guns pictured provide a broad overview of witness marks, both of unmodified guns and re-barrels.


Example 01--Vickers. Suspicious.


Example 02--KOL. Definite re-barrel.


Example 03--1900 American Eagle. Perfect witness mark, single strike, single instrument, shows no misalignment even under high magnification. Re-blue.


Example 04--S/42 1936. Not perfectly aligned, all other evidence points to the barrel being original.


Example 05--Erfurt LP-08. Perfect witness mark, single strike, single instrument. Apparent misalignment is artifact of lighting and steel surface, under high magnification the bottom of the strike is aligned.


Example 06--Modern re-barrel. Presented for contrast.


Example 07--1917 Navy. Two strikes, misaligned by less than 1/4 line width. All other evidence points to the barrel being original.


Example 08--1929 Police. No barrel mark.


Example 09--byf 42. Nickel-plated, barrel apparently removed and reinstalled.


Example 10--1917 LP-08. Two strikes, aligned, all evidence is barrel is original.


Example 11--1918 LP-08. Re-barrel--barrel is period/authentic LP-08 barrel, but is not matched to receiver.




THE SURVEY
In an attempt to ascertain the characteristic witness marks of authentic, unmodified Lugers, guns were examined and reported. These Lugers were presented as all-original, unmolested samples. A descriptive system was devised to quantify the observations:

One line, perfect
*indicates that the barrel/receiver was indexed in one stroke by one instrument, and remains undisturbed.

One line, Misaligned
*indicates the barrel/receiver was indexed with one stroke, but the lines are misaligned by less than one line width.

Two lines, Aligned and Misaligned
*indicates that it appears that the barrel and receiver were indexed with separate strokes.
*Indications of separate strokes are:
--two lines at a different angles to the long axis of the receiver;
--a gap between the lines;
--different line widths;
--different line shapes;
--(Note: line ?, means: can't tell if one or two index lines).

Aligned indicates that the barrel and receiver lines appear to line up, under moderate magnification.

Misaligned indicates that the barrel and receiver lines are misaligned by one line width or less.

Not aligned indicates that the receiver and barrel marks are misaligned by greater than one line width (intuitively, one would not expect an original, unaltered barrel/receiver to be Not aligned).

No Barrel, A witness mark on the receiver but with no corresponding mark on the barrel.

No Mark, no witness marks appearing on the gun.

144 Lugers were reported in this brief survey:

Early Imperial
6 reported, 5 perfect

DWM Military
59 reported
24 perfect
25 Aligned
10 Misaligned
included
5 LP-08, 1 misaligned
5 Navy, 1 misaligned

Erfurt
13 reported, including 1 LP-08, all aligned

Weimar (non-police)
5 reported, miscellaneous characteristics
4 aligned, one serious misalign

post-Weimar re-barrel
Three, one aligned, one with not barrel mark, one with no mark at all

Simson, three reported
one rework seriously misaligned, two Suhl aligned

Mauser, military
19 reported
10 aligned
9 misaligned

Mauser banner, 3 examples, all aligned

Cutaway, aligned

Krieghoff
23 reported
19 no mark
the rest aligned or unidentified

Only a single sample each of Dutch and Finnish, both aligned.

Police, all kinds
4 DWM, 1 Erfurt aligned (one no barrel)
2 Mauser both misaligned

Two original replacement barrels were reported, they had no mark

For the sake of comparison, witness mark information on modern Lugers was solicited.

3 Mauser Interams--one with no barrel mark, two with no mark

Stainless Steel Stoeger with no mark

one Martz 9mm re-barrel, aligned

METALWORKING
There are so many witness marks which are not perfect strikes that one can only wonder, how did they get that way? There are two circumstances to examine: one, where a single line is displaced; and two, where there are obviously two lines.

Some different possibilities were proposed for misalignment of a single strike: the shock of the shooting impulse combined with the torque exerted on the barrel by the bullet in its travel tending to "back" the barrel threads minutely in the receiver; and relaxation over time of the internal "springy-ness" from the torsion of barrel tightening; were two of the more prominent.

The other circumstance is where there are obviously two strikes, one strike made for the receiver, and the other strike made for the barrel. One cause of this could be, that the barrel flange radius is larger than that of the receiver to which it is mated. The question arises, if it is even possible to even make a single-strike witness mark in this circumstance? Pertinent here is the observation that barrel steel is not as hard--is more ductile--than the steel of the receiver, and so the metal at the edges of the stroke would appear different. This is noticeable in examples 04 and 09.

I found it noteworthy that in all the examples the witness marks on the receivers were perfectly centered between the flats on either side, almost as though the marks were struck in a jig.

In order to satisfy my curiosity about some of these questions, I determined to strike some witness marks. The subject gun was example 09. (Its being nickel-plated, I felt confident that its value could not be reduced further by the experiment.) The barrel flange sticks out above the surface of the receiver .013", which made this a test of striking a witness mark over an uneven surface. The results described can be seen in the photograph below.

For the first attempt I placed the receiver on a firm surface, with a chisel in contact with both the barrel and the receiver, which meant that it was canted at an angle. It was immediately apparent that the steel surfaces here are extremely slippery, and it was nearly impossible to hold the chisel in exactly the right place in order to strike the mark. The second thing I observed was that the instrument which strikes Luger witness marks must be extremely thin and extremely sharp, unlike the chisel I had at hand.

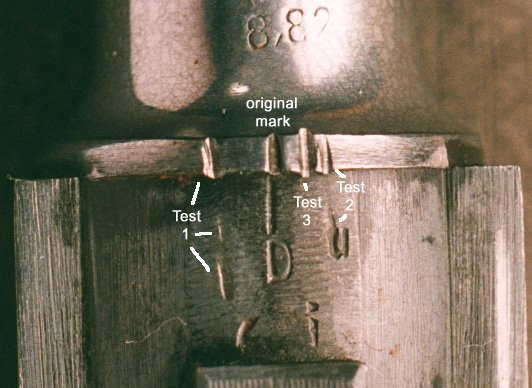

Test strike #1 on the example picture is actually a double strike, because on the first strike the chisel moved too far back onto the receiver. This was caused by the difficulty in holding the receiver and chisel in position, and I could not strike a sufficiently solid blow.

Test strike #2 has the chisel in the same orientation relative to the receiver and barrel, but the receiver itself was clamped firmly in a padded vise. This allowed me much better control (still not sufficient), and a much firmer blow. The result is the same as test #1.

The third strike was to test the possibility of actually making a single-width, single-stroke mark with a barrel flange which extends above the receiver. I placed the chisel on the barrel flange parallel to the receiver surface, and hit it pretty hard. The chisel made a very wide mark on the barrel flange, as expected, but it actually did not contact the receiver at all. It might have, had the chisel been narrower and sharper, or had I been willing to clamp the receiver more firmly in the vise.

Judging by the examples which show two strikes, a great deal of control was exhibited by the original technicians in order to mark the barrel flange and still not "nick" the receiver. Also, the you'll note that in test #3 the barrel steel was displaced over the receiver itself.


LUGER BARRELS
Many imaginative theories for the fabrication of Luger barrels, such as the one which appears at the start of this report, have been advanced; and the subject has proved to be controversial. A contemporary description of how Lugers were manufactured (at least, in English), or photographs of the process, have not been forthcoming until now.

The reminiscence of a Czech forced-laborer in the Mauser factory has provided the definitive steps of P-08 barrel manufacture. This individual worked in "Lauffertigung" (barrel production) as a tool setter. He remembers the barrel was made from round steel rod, the operation sequence was:
1. Rod cut to length;
2. Barrel rod bored through its length and then reamed;
3. Outer surface turned on a lathe;
4. Front sight base milled;
5. Main thread milled.

The barrels in the white, unnumbered, unmarked, with no rifling or chamber, were sent on to another stage(2).

Barrel replacement is one of the repairs which could be undertaken by military armorers on behalf of a Luger, with implications for the witness mark question. Imaginative theories were discussed including the possibility of field armorer replacement.

Joachim Görtz, in a past issue of Automag, provided translation of the army list of repair parts available to unit armorers. Barrels and receivers were not even available at this level; he mentions a footnote which specifies replacement of these parts be carried out in the repair shop of the relevant Field Equipment Office (Herres-Zeugamt)(3).

The Instructions presented by Görtz & Bryans include power-proofing procedures for barrel/receiver/breechblock replacement; the procedures imply that proof stamping would carried out as for a new pistol(4). Since the witness mark stamp was required immediately preceding power-proof, logic implies that this would have been applied to the new barrel or receiver when they were mated up to the corresponding part.

Görtz (in Automag) notes that the pistol would also be stamped by the particular Zeugamt's designator (HzA stamp).

CONCLUSIONS AND MORE QUESTIONS
A conclusion or two may be drawn from the discussion, but it leaves many more questions than answers.

A perfect witness mark can be a strong, perhaps even primary, indicator that a Luger barrel is authentic and original to the gun. The survey sample demonstrates that one should not automatically expect to find a perfect witness mark on any individual Luger. Witness marks which are not perfect cannot by themselves indicate anything about the originality or authenticity of the barrel/receiver combination. In general, the finish, signs of aging, and details of machining and markings are of more importance in determining boosted or faked Lugers, as it has always been.

The question is still open as to what misaligned witness marks actually reveal. The discussion presented a number of possibilities:

1. Slight alignment difference, but same mark:
-Slight twisting of barrel.
-Barrel was removed and refitted.

2. Witness marks on barrel and receiver differ:
-Replaced barrel.
-Replaced receiver.

3. No witness mark on barrel and receiver:
-Produced that way

4. No witness mark on one, but witness mark on other.
-Replaced barrel.
-Replaced receiver.

This still begs the question which started the whole topic: have Lugers been re-barreled more often than we tend to consider?

Late in the discussion evidence was discovered which sheds light on this question. It gives a firm answer to one circumstance, and may point a direction for further exploration. August Weiss, director of all handgun production for Mauser during WWII (and a manager at DWM before that) is quoted in  "German Small Arms Markings"(5):

"Thousands of pistol barrels, having passed all inspection by means of gauges and the bores of which had been checked by a high-power magnifying glass, were rejected by [the inspectors] after power proof..., had to be screwed out of receivers, and were scrapped."

So, in the case of thousands of WWII Lugers, at least, we have: pistols whose witness marks will be two marks and may not precisely align; pistols which have been patently rebarrelled; and re-barreling which is at the same time completely authentic to the pistol. This may explain the unusual characteristics of the barrel marking of example 04 (and makes me feel much better about it).



Herr Weiss's comment begs the question of what other manufacturing practices might result in re-barreling, with the resultant implications for the witness marks which we find on our Lugers today. We can only wonder whether inspection at DWM and Erfurt in WWI, and Simson and Krieghoff, might have resulted in similar activity; and we must not forget about Waffenfabrik Bern.

The term "Arsenal refinish" is thrown around pretty casually in describing Lugers. What is an "Arsenal refinish"? Might it have included re-barreling?

"Police rework" is another imprecise term. When did Police conversion include re-barreling of Lugers? Are there documents specifying Police conversion requirements, or reporting on conversion practices?

Answers to these questions must be floating around. The more information which can be dredged up about re-barreling practices (particularly about how they are marked), the more the witness mark may be "honed in" as a useful adjunct to identify legitimate vs. re-barreled, faked, or boosted Lugers. It is equally possible, of course, that the information may show witness marks to be totally useless in this respect; this in itself would be useful to know.

That being said, there are some specific pistol types whose characteristics are of interest even though potentially re-barreled. Inter-war Commercial Lugers (both rework and new manufacture); all Police models (both rework and new manufacture); and all Dutch and Finnish Lugers are of particular interest.

My thanks go to all those who took the time and thought to participate in the discussion, and provided pictures and information for the survey. Particular thanks goes to Jan C. Still, for examining and reporting a huge sample of witness marks, and for the leap of insight which forms the basis for the descriptive quantification of the examples. Thanks also goes to Heinz Ahlers for clear and concise thinking, and for pointing out the August Weiss comment, hidden in plain sight.

--Dwight Gruber

References:

(1) "German Small Arms Markings" p.111, Joachim Görtz & Don L. Bryans, Walsworth Publishing Co., 1997
(2) Jan Balcar, private correspondence
(3) Joachim Görtz, Automag, February 1996 vol. XXVIII, p. 267
(4) Görtz & Bryans, pp115-123
(5) Görtz & Bryans, p.136
